Copy a TRLE animation frame to an XNALara pose

In this tutorial I will be using XNALara Posing Studio (XPS) 11.4 by XNAaraL from http://xnalaraitalia.deviantart.com/ and replicate a pose from a Tomb Raider Level Editor (TRLE) wad animation.

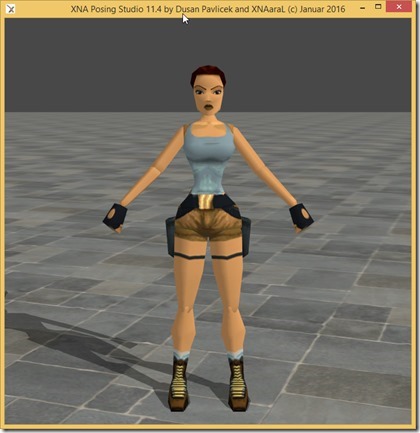

The first step is to change the model’s bind pose in XNALara to match the “No animating” pose as shown in Wadmerger’s Animation Editor.
Usually this will mean changing the position of the arms so they are beside the model’s body and not in a T-pose.



For best results you must use an XNALara model that is similar to the TRLE model such as the “too_lara_1996” model included with XPS which I use here.



Position the arms beside the body.



Now go to the Modify menu and click Save Generic_Item and select “modify armature according to the current pose”.



Click OK and the confirm you want to modify the armature and then save the model into a new folder inside the “data” folder.

Reset the scene and load the model you just saved.

In Wadmerger’s Animation Editor select an animation and export it from the Animation menu as a .TRW file.

Open the animation in my TRW Editor program which displays the rotation values for all the meshes for each keyframe of the animation.



Now what you do is match a mesh to a bone in XPS, select that bone and enter –1 x RotX for the X axis value, –1 x RotY for the Y axis value and RotZ for the Z axis value.

The angles in TRW Editor are from 0 to 1024 representing 0 to 360 degrees but if you right click on an angle the value in degrees will be shown.

Convert the angles in degrees between 360 and 180 to a value between 0 and –180. Not necessary!

I matched the bones as follows.

• Mesh 0 – root hips
• Mesh 1 – leg left thigh
• Mesh 2 – leg left knee
• Mesh 3 – leg left ankle
• Mesh 4 – leg right thigh
• Mesh 5 – leg right knee
• Mesh 6 – leg right ankle
• Mesh 7 – spine lower
• Mesh 8 – arm right shoulder 2
• Mesh 9 – arm right elbow
• Mesh10 – arm right wrist
• Mesh11 – arm left shoulder 2
• Mesh12 – arm left elbow
• Mesh13 – arm left wrist
• Mesh14 – head neck upper

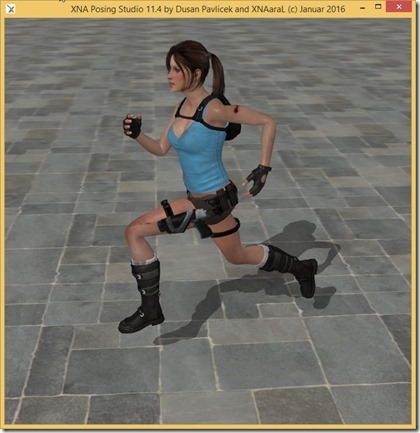

Once you have made your pose, save the pose with File>Save selected pose.

You can load the pose for other models to see how it looks but if the proportions of the model do not match the TRLE model the pose may not be perfect.

	#python 2.5
	# copy this python file to your XNALara pose folder and run from there
	# since pose files are written to the same folder the python file runs from.
	# This script copies all keyframes of a TRW file to a pose file each.
	#WARNING: will overwrite files of the same name
	import os.path, sys
	from tkFileDialog import askopenfilename as tkFileGet
	import Tkinter as tk
	import struct
	bonenames =["root hips",
	"leg left thigh",
	"leg left knee",
	"leg left ankle",
	"leg right thigh",
	"leg right knee" ,
	"leg right ankle",
	"spine lower",
	"arm right shoulder 2",
	"arm right elbow" ,
	"arm right wrist",
	"arm left shoulder 2",
	"arm left elbow",
	"arm left wrist",
	"head neck upper"]
	class AppData:
	pass
	class BBox:
	def __init__(self):
	self.x1,self.x2 = 0,0
	self.y1,self.y2 = 0,0
	self.z1,self.z2 = 0,0
	self.size = 12
	def clear(self):
	self.x1,self.x2 = 0,0
	self.y1,self.y2 = 0,0
	self.z1,self.z2 = 0,0
	self.size = 12
	return
	def __str__(self):
	return "%i %i %i %i %i %i"%(self.x1,self.x2,self.y1,self.y2,self.z1,self.z2)
	class Offset:
	def __init__(self):
	self.x = 0
	self.y = 0
	self.z = 0
	self.size = 6
	def __str__(self):
	return "(%i %i %i)"%(self.x,self.y,self.z)
	class Angle:
	def __init__(self):
	self.rotx = 0
	self.roty = 0
	self.rotz = 0
	self.size = self.calcSize()
	def __str__(self):
	return "(%4i %4i %4i)"%(self.rotx, self.roty,self.rotz)
	def calcSize(self):
	l = [self.rotx,self.roty,self.rotz]
	if l.count(0) < 2:
	size = 4 # 3 axis rotation
	else:
	size = 2 # single axis rotation
	return size
	def toDegrees(self):
	return self.rotx*360.0/1024, self.roty*360.0/1024, self.rotz*360.0/1024
	class Keyframe:
	def __init__(self):
	self.id = None
	self.bb = None
	self.offset = None
	self.nummeshes = None
	self.angles = []
	self.size = 0
	class AnimCommand:
	def __init__(self):
	self.cmd = None
	self.op1 = None
	self.op2 = None
	self.op3 = None
	class TRW:
	def __init__(self):
	self.name = ""
	self.version = None
	self.keyoffset = None
	self.frameduration = None
	self.keyframesize = None
	self.stateid = None
	self.unknown1 = None
	self.speed = None
	self.acc = None
	self.unknown2 = None
	self.framestart = None
	self.frameend = None
	self.nextanim = None
	self.frameIn = None
	self.numStateChanges = None
	self.changesIndex = None
	self.numCommands = None
	self.commandsOffset = None
	self.ffff=-1
	self.numAnimCommands = None
	self.animcommands = []
	self.keypackagesize = None
	self.numFrames = None
	self.numKeys = None
	self.keys = []
	self.maxkeysize = 0
	self.nummeshes = 0
	def parseTRW(fn):
	ok=False
	trw = TRW()
	print fn
	f =open(fn,"rb")
	trw.version = f.read(8) #190 0 5 0 ????
	trw.keyoffset, = struct.unpack('I',f.read(4))
	print 'keyoffset',trw.keyoffset
	trw.frameduration, = struct.unpack('B',f.read(1))
	print 'frameduration', trw.frameduration
	trw.keyframesize,=struct.unpack('B',f.read(1))
	print 'keyframesize %i words'%trw.keyframesize
	trw.stateid, = struct.unpack('H',f.read(2))
	print 'stateid ',trw.stateid
	trw.unknown1 = f.read(2)
	trw.speed, = struct.unpack('h',f.read(2))
	print 'speed ',trw.speed
	trw.acc,=struct.unpack('i',f.read(4))
	print 'acc ',trw.acc*1.0/65536
	trw.unknown2 = f.read(8)
	trw.framestart,=struct.unpack('H',f.read(2))
	print 'framestart ',trw.framestart
	trw.frameend, = struct.unpack('H',f.read(2))
	print 'frameend ',trw.frameend
	trw.nextanim,=struct.unpack('h',f.read(2)) #offset
	print 'nextanim (offset)',trw.nextanim
	trw.frameIn,=struct.unpack('H',f.read(2))
	print 'frameIn ',trw.frameIn
	trw.numStateChanges,=struct.unpack('H',f.read(2))
	print 'numStateChanges ',trw.numStateChanges
	trw.changesIndex,=struct.unpack('H',f.read(2))
	print 'changesIndex ',trw.changesIndex
	trw.numCommands, = struct.unpack('H',f.read(2))
	print 'numCommands ',trw.numCommands
	trw.commandsOffset, = struct.unpack('H',f.read(2))
	print 'commandsOffset ', trw.commandsOffset
	trw.ffff = f.read(4) #0xFFFF marker???
	trw.numAnimCommands, = struct.unpack('H',f.read(2))
	print 'numAnimCommands ',trw.numAnimCommands
	for i in range(trw.numAnimCommands):
	ac = AnimCommand()
	ac.cmd, = struct.unpack('H',f.read(2))
	ac.op1,ac.op2,ac.op3=struct.unpack('hhh',f.read(6))
	trw.animcommands.append(ac)
	print '\tanimcommand %i %i %i %i'%(ac.cmd,ac.op1,ac.op2,ac.op3)
	trw.keypackagesize, = struct.unpack('I',f.read(4))
	print 'keypackagesize is %i words'%trw.keypackagesize
	trw.numFrames, = struct.unpack('I',f.read(4))
	print 'numFrames ',trw.numFrames
	trw.numKeys, = struct.unpack('I',f.read(4))
	print 'numKeys ',trw.numKeys
	'''
	test = keypackagesize/keyframesize
	if numKeys != test:
	tkMessageBox.showinfo('Error.','Error with numkeys.')
	numKeys = test
	'''
	keysizelist=[]
	keys = []
	for i in range(trw.numKeys):
	key = Keyframe()
	#print '-'*20
	key.id = i
	#print 'key %i'%i
	bb = BBox()
	bb.x1,bb.x2,bb.y1,bb.y2,bb.z1,bb.z2 = struct.unpack('6h',f.read(12))
	key.bb = bb
	key.size += bb.size
	off = Offset()
	off.x,off.y,off.z = struct.unpack('3h',f.read(6))
	key.offset = off
	key.size += off.size # should equal 18
	#print 'bb: %i %i %i %i %i %i offset: %i %i %i'%(bb.x1,bb.x2,bb.y1,bb.y2,bb.z1,bb.z2,off.x,off.y,off.z)
	key.nummeshes, = struct.unpack('H',f.read(2))
	trw.nummeshes = key.nummeshes
	for i in range(key.nummeshes):
	ang = Angle()
	ang.rotx,ang.roty,ang.rotz = struct.unpack('HHH',f.read(6)) #360 degrees = 1024
	rx,ry,rz = convertAngle(ang.rotx,ang.roty,ang.rotz)
	#print 'Mesh#%i %i %i %i (%f %f %f)'%(i,ang.rotx,ang.roty,ang.rotz,rx,ry,rz)
	key.size += ang.calcSize()
	key.angles.append(ang)
	#size += getKeySize(rotx,roty,rotz)
	#print 'size in wad: %i bytes'%key.size
	keys.append(key)
	keysizelist.append(key.size)
	f.close()
	trw.keys = keys
	trw.maxkeysize = max(keysizelist)
	print
	if trw.maxkeysize%2 != 0:
	print 'Error calculating keysize. Not multiple of 2'
	return
	else:
	trw.maxkeysize /=2
	print 'maxkeysize %i words'%trw.maxkeysize
	AppData.trw = trw
	ok=True
	return ok
	def getKeySize(rx,ry,rz):
	list = [rx,ry,rz]
	if list.count(0) < 2:
	size = 4 # 3 axis rotation
	else:
	size = 2 # single axis rotation
	return size
	def convertAngle(rx,ry,rz):
	return rx*360.0/1024,ry*360.0/1024,rz*360.0/1024
	def openFile():
	fn = tkFileGet(title='Select a file',
	filetypes=[('Wadmerger .trw','*.TRW'),('All Files','*.*')])
	if fn:
	if fn[-4:].lower() in ['.trw']:
	print "Testing %s"%fn
	print
	if not parseTRW(fn):
	print 'Error reading file'
	return False
	else:
	return True
	else:
	print fn+' selected\n\nNeed .TRW file.'
	return False
	else:
	print 'No file selected.'
	return False
	if __name__=='__main__':
	if openFile():
	for kf in range(AppData.trw.numKeys):
	keyframe = AppData.trw.keys[kf]
	print "Writing pose file"
	f = open("keyframe%i.pose"%kf,"w")
	for k in range(keyframe.nummeshes):
	ang = keyframe.angles[k]
	rx,ry,rz = convertAngle(ang.rotx,ang.roty,ang.rotz)
	f.write("%s: %.6f %.6f %.6f 0 0 0\n"%(bonenames[k],-rx,-ry,rz))
	f.close()
	print "Done"

view raw trw2xna.py hosted with ❤ by GitHub

Karlito modified the script to include root translation and to use filenames suitable for XPS animation. [link]

	#python 2.5
	# copy this python file to your XNALara pose folder and run from there
	# since pose files are written to the same folder the python file runs from.
	# This script copies all keyframes of a TRW file to a pose file each.
	#WARNING: will overwrite files of the same name
	import os, shutil
	import os.path, sys
	from tkFileDialog import askopenfilename as tkFileGet
	import Tkinter as tk
	import struct
	bonenames =["root hips",
	"leg left thigh",
	"leg left knee",
	"leg left ankle",
	"leg right thigh",
	"leg right knee" ,
	"leg right ankle",
	"spine lower",
	"arm right shoulder 2",
	"arm right elbow" ,
	"arm right wrist",
	"arm left shoulder 2",
	"arm left elbow",
	"arm left wrist",
	"head neck upper"]
	filename = "default"
	bb0 = [] # y offset value for root hips
	bb1 = [] # y offset value for root hips
	bb2 = [] # z offset value for root hips
	class AppData:
	pass
	class BBox:
	def __init__(self):
	self.x1,self.x2 = 0,0
	self.y1,self.y2 = 0,0
	self.z1,self.z2 = 0,0
	self.size = 12
	def clear(self):
	self.x1,self.x2 = 0,0
	self.y1,self.y2 = 0,0
	self.z1,self.z2 = 0,0
	self.size = 12
	return
	def __str__(self):
	return "%i %i %i %i %i %i"%(self.x1,self.x2,self.y1,self.y2,self.z1,self.z2)
	class Offset:
	def __init__(self):
	self.x = 0
	self.y = 0
	self.z = 0
	self.size = 6
	def __str__(self):
	return "(%i %i %i)"%(self.x,self.y,self.z)
	class Angle:
	def __init__(self):
	self.rotx = 0
	self.roty = 0
	self.rotz = 0
	self.size = self.calcSize()
	def __str__(self):
	return "(%4i %4i %4i)"%(self.rotx, self.roty,self.rotz)
	def calcSize(self):
	l = [self.rotx,self.roty,self.rotz]
	if l.count(0) < 2:
	size = 4 # 3 axis rotation
	else:
	size = 2 # single axis rotation
	return size
	def toDegrees(self):
	return self.rotx*360.0/1024, self.roty*360.0/1024, self.rotz*360.0/1024
	class Keyframe:
	def __init__(self):
	self.id = None
	self.bb = None
	self.offset = None
	self.nummeshes = None
	self.angles = []
	self.size = 0
	class AnimCommand:
	def __init__(self):
	self.cmd = None
	self.op1 = None
	self.op2 = None
	self.op3 = None
	class TRW:
	def __init__(self):
	self.name = ""
	self.version = None
	self.keyoffset = None
	self.frameduration = None
	self.keyframesize = None
	self.stateid = None
	self.unknown1 = None
	self.speed = None
	self.acc = None
	self.unknown2 = None
	self.framestart = None
	self.frameend = None
	self.nextanim = None
	self.frameIn = None
	self.numStateChanges = None
	self.changesIndex = None
	self.numCommands = None
	self.commandsOffset = None
	self.ffff=-1
	self.numAnimCommands = None
	self.animcommands = []
	self.keypackagesize = None
	self.numFrames = None
	self.numKeys = None
	self.keys = []
	self.maxkeysize = 0
	self.nummeshes = 0
	def parseTRW(fn):
	ok=False
	trw = TRW()
	print fn
	f =open(fn,"rb")
	trw.version = f.read(8) #190 0 5 0 ????
	trw.keyoffset, = struct.unpack('I',f.read(4))
	print 'keyoffset',trw.keyoffset
	trw.frameduration, = struct.unpack('B',f.read(1))
	print 'frameduration', trw.frameduration
	trw.keyframesize,=struct.unpack('B',f.read(1))
	print 'keyframesize %i words'%trw.keyframesize
	trw.stateid, = struct.unpack('H',f.read(2))
	print 'stateid ',trw.stateid
	trw.unknown1 = f.read(2)
	trw.speed, = struct.unpack('h',f.read(2))
	print 'speed ',trw.speed
	trw.acc,=struct.unpack('i',f.read(4))
	print 'acc ',trw.acc*1.0/65536
	trw.unknown2 = f.read(8)
	trw.framestart,=struct.unpack('H',f.read(2))
	print 'framestart ',trw.framestart
	trw.frameend, = struct.unpack('H',f.read(2))
	print 'frameend ',trw.frameend
	trw.nextanim,=struct.unpack('h',f.read(2)) #offset
	print 'nextanim (offset)',trw.nextanim
	trw.frameIn,=struct.unpack('H',f.read(2))
	print 'frameIn ',trw.frameIn
	trw.numStateChanges,=struct.unpack('H',f.read(2))
	print 'numStateChanges ',trw.numStateChanges
	trw.changesIndex,=struct.unpack('H',f.read(2))
	print 'changesIndex ',trw.changesIndex
	trw.numCommands, = struct.unpack('H',f.read(2))
	print 'numCommands ',trw.numCommands
	trw.commandsOffset, = struct.unpack('H',f.read(2))
	print 'commandsOffset ', trw.commandsOffset
	trw.ffff = f.read(4) #0xFFFF marker???
	trw.numAnimCommands, = struct.unpack('H',f.read(2))
	print 'numAnimCommands ',trw.numAnimCommands
	for i in range(trw.numAnimCommands):
	ac = AnimCommand()
	ac.cmd, = struct.unpack('H',f.read(2))
	ac.op1,ac.op2,ac.op3=struct.unpack('hhh',f.read(6))
	trw.animcommands.append(ac)
	print '\tanimcommand %i %i %i %i'%(ac.cmd,ac.op1,ac.op2,ac.op3)
	trw.keypackagesize, = struct.unpack('I',f.read(4))
	print 'keypackagesize is %i words'%trw.keypackagesize
	trw.numFrames, = struct.unpack('I',f.read(4))
	print 'numFrames ',trw.numFrames
	trw.numKeys, = struct.unpack('I',f.read(4))
	print 'numKeys ',trw.numKeys
	'''
	test = keypackagesize/keyframesize
	if numKeys != test:
	tkMessageBox.showinfo('Error.','Error with numkeys.')
	numKeys = test
	'''
	keysizelist=[]
	keys = []
	for i in range(trw.numKeys):
	key = Keyframe()
	#print '-'*20
	key.id = i
	#print 'key %i'%i
	bb = BBox()
	bb.x1,bb.x2,bb.y1,bb.y2,bb.z1,bb.z2 = struct.unpack('6h',f.read(12))
	key.bb = bb
	key.size += bb.size
	off = Offset()
	off.x,off.y,off.z = struct.unpack('3h',f.read(6))
	key.offset = off
	key.size += off.size # should equal 18
	#print 'bb: %i %i %i %i %i %i offset: %i %i %i'%(bb.x1,bb.x2,bb.y1,bb.y2,bb.z1,bb.z2,off.x,off.y,off.z)
	bb0.append(off.x)
	bb1.append(off.y)
	bb2.append(off.z)
	key.nummeshes, = struct.unpack('H',f.read(2))
	trw.nummeshes = key.nummeshes
	for i in range(key.nummeshes):
	ang = Angle()
	ang.rotx,ang.roty,ang.rotz = struct.unpack('HHH',f.read(6)) #360 degrees = 1024
	rx,ry,rz = convertAngle(ang.rotx,ang.roty,ang.rotz)
	#print 'Mesh#%i %i %i %i (%f %f %f)'%(i,ang.rotx,ang.roty,ang.rotz,rx,ry,rz)
	key.size += ang.calcSize()
	key.angles.append(ang)
	#size += getKeySize(rotx,roty,rotz)
	#print 'size in wad: %i bytes'%key.size
	keys.append(key)
	keysizelist.append(key.size)
	f.close()
	trw.keys = keys
	trw.maxkeysize = max(keysizelist)
	print
	if trw.maxkeysize%2 != 0:
	print 'Error calculating keysize. Not multiple of 2'
	return
	else:
	trw.maxkeysize /=2
	print 'maxkeysize %i words'%trw.maxkeysize
	AppData.trw = trw
	ok=True
	return ok
	def getKeySize(rx,ry,rz):
	list = [rx,ry,rz]
	if list.count(0) < 2:
	size = 4 # 3 axis rotation
	else:
	size = 2 # single axis rotation
	return size
	def convertAngle(rx,ry,rz):
	return rx*360.0/1024,ry*360.0/1024,rz*360.0/1024
	def openFile():
	fn = tkFileGet(title='Select a file',
	filetypes=[('Wadmerger .trw','*.TRW'),('All Files','*.*')])
	filename = fn
	if fn:
	if fn[-4:].lower() in ['.trw']:
	print "Testing %s"%fn
	print
	if not parseTRW(fn):
	print 'Error reading file'
	return False
	else:
	return fn
	else:
	print fn+' selected\n\nNeed .TRW file.'
	return False
	else:
	print 'No file selected.'
	return False
	if __name__=='__main__':
	filename = openFile()
	if filename:
	directory = os.path.splitext(filename)[0] # for testing use: directory = "default"
	if not os.path.exists(directory):
	os.makedirs(directory)
	for the_file in os.listdir(directory):
	file_path = os.path.join(directory, the_file)
	try:
	if os.path.isfile(file_path):
	os.unlink(file_path)
	#elif os.path.isdir(file_path): shutil.rmtree(file_path)
	except Exception as e:
	print(e)
	for kf in range(AppData.trw.numKeys):
	keyframe = AppData.trw.keys[kf]
	print "Writing pose file"
	#print 'y offset: %i'%(bb1[0])
	if kf > 999:
	f = open("%s\keyframe%i.pose"%(directory,kf),"w")
	else:
	if kf > 99:
	f = open("%s\keyframe0%i.pose"%(directory,kf),"w")
	else:
	if kf > 9:
	f = open("%s\keyframe00%i.pose"%(directory,kf),"w")
	else:
	f = open("%s\keyframe000%i.pose"%(directory,kf),"w")
	for k in range(keyframe.nummeshes):
	ang = keyframe.angles[k]
	rx,ry,rz = convertAngle(ang.rotx,ang.roty,ang.rotz)
	if k == 0:
	f.write("%s: %.6f %.6f %.6f %.6f %.6f %.6f\n"%(bonenames[k],-rx,-ry,rz,-bb0[kf]/1000.0,-bb1[kf]/1000.0,bb2[kf]/1000.0))
	else:
	f.write("%s: %.6f %.6f %.6f 0 0 0\n"%(bonenames[k],-rx,-ry,rz))
	f.close()
	print "Done"

view raw trw2xna2.py hosted with ❤ by GitHub

TRLE -> ms3d: Negate RotY and RotZ and convert from yxzr order to xyzs.
